Tregoo 10-50 Extreme Solar Power Station

Applications

Media gallery

TREGOO 10-50 Extreme


THE WORLD'S MOST VERSATILE SOLAR POWER STATION

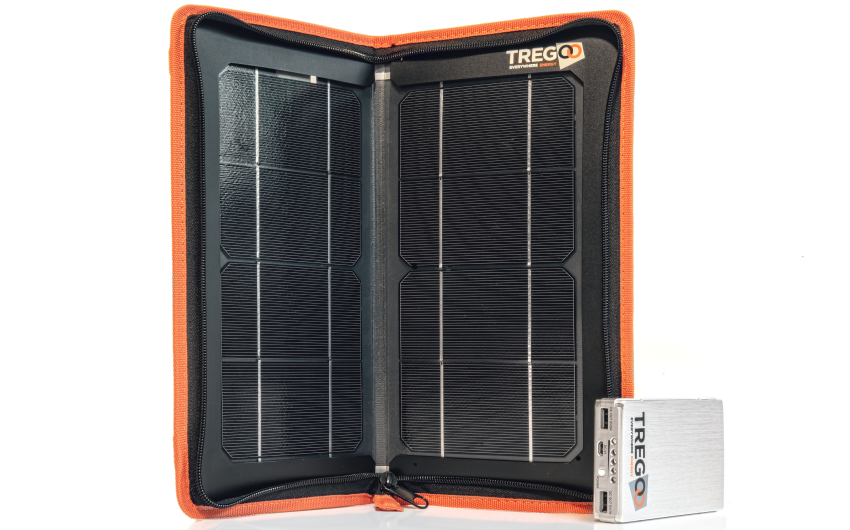

Tregoo 10-50 Extreme is a solar kit composed of Hippy 10 Extreme solar panel and Lizard 50 power pack. This solar charger kit offers up to 50Wh autonomy to recharge most USB devices. It is  possible to recharge a smartphone and a tablet at the same time.


94,90

8051764400027
Out of stock

The Tregoo photovoltaic panels have to be connected to a battery through a charge controller.

With Tregoo 10-50 Extreme kit it is possible to recharge most USB devices, including tablets.

DATA SHEET - HIPPY 10 Extreme

Tech specs

Nominal power

10W

Kind of cell

Monocrystalline

Size - open (mm)

350x330

Size - closed (mm)

175x330

Weight (kg)

 0,35

Output

USB output

5V, 0-2A

Power Pack

Approximate recharge time

Lizard 10

4 hours

Lizard 50

10 hours

DATA SHEET - LIZARD 50

Size (mm)

120x75x20

Weight (kg)

0,25

Input

Micro USB

5V - 1000mA Max

Output

USB A output

5V - 1000mA Max

USB B output

5V - 2100mA Max

Internal components

Battery

Li-Ion

Battery capacity

50Wh - 13800mAh

Lifetime (n°of cycles)

800

Q & A

Q - How long does it take to recharge the battery through the photovoltaic panel?
A - Tregoo 10-50 Extreme kit reaches 100% charge, thanks to Hippy 10 Extreme, in only 10 hours.

Q - Is Tregoo 10-50 Extreme kit water resistant?
A - Hippy 10 Extreme resists even in case of rain, but it is advisable to protect the USB port on the back of the panel. Lizard 50 is not water resistant.

Q - What can I recharge with Tregoo 10-50 Extreme kit?
A - With Tregoo 10-50 Extreme kit I can recharge most USB devices, including tablets.

How to expose the panels

In order to achieve optimal performance of the panel, make sure it has the best orientation possible relative to the sun.

Best exposure
The surface of the solar panel is perpendicular compared to the rays of sunshine.

Good exposure
The surface of the solar panel is inclined compared to the rays of sunshine.

Worst exposure

The surface of the solar panel is parallel to the rays of sunshine.

Atmosphere and performance

Solar panels are tested in ideal conditions to verify their functioning.

In real conditions things may change, since the power generated by the panel is influenced by different factors, such as the orientation of the panel relative to the sun and weather conditions.

For example, with a clear sky and optimal orientation, the panel can make 100% nominal power. However, if the sky is clouded, the panel will make 50% even if its orientation relative to the sun is great.

Technology

The photovoltaic Tregoo panels are thin and light flexible monocrystalline modules.

They are made of thermoplastic technopolymers provided with high physical-mechanical characteristics. The absence of glass and frame makes them eight times lighter than rigid panels in crystalline silicon, (2Kg/sq m) and thin (1.7mm thickness).

Their efficiency is almost three times better than other flexible panels in amorphous silicon and are also made of totally recyclable plastic materials.

Tregoo panels are not afraid of damages caused by vibrations or high temperatures and are characterised by a high resistance to atmospheric agents. Moreover, the modules flexibility allows to apply panels even on curved surfaces.

Duration and conservation


Panels
Solar panels require very limited maintenance, thanks to the absence of moving parts.
The dirt accumulated on the surface over the photovoltaic cells can reduce their performances.
A regular cleaning of the panel, using fresh water, with non-abrasive sponges and without high pressure water jets, is sufficient.

Power Packs
If left unused for long periods, it is recommended to fully recharge the battery for 24 hours, every two-three months.
For the first use, it is advisable to fully recharge the battery for 24 hours.

Warranty

All products have 2 years warranty from the date of purchase with the formula “ Send Back and Get a New One”:

  1. 1. Contact Customer Service and open a Ticket
  2. 2. Once the Ticket has been opened, the courier will collect the defective item.
  3. 3. Once the product has been received, Tregoo will send the client a new item for free.

​Warranty includes structural and functional defects of the item. Damages due to misuse, scratches or normal wear, are not covered. For further information, see “Returns”.
